253 - electrical unit (Denso) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo デンセイ)drive 2WD (two-wheel drive )
Manufacture period01.1998 - ...grade FX2transmission MT (manual transmission )


Scheme 253-_001 Scheme 253-_002 Scheme 253-_003 Scheme 253-_004 Scheme 253-_005 Scheme 253-_007 Scheme 253-_011 Scheme 253-_012 Scheme 253-_013
Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998エンジン(3)
W +4DV +5DV01.1998 - ...エンジン(3)

Open full screen pictureOpen full screen picture
Up to the top

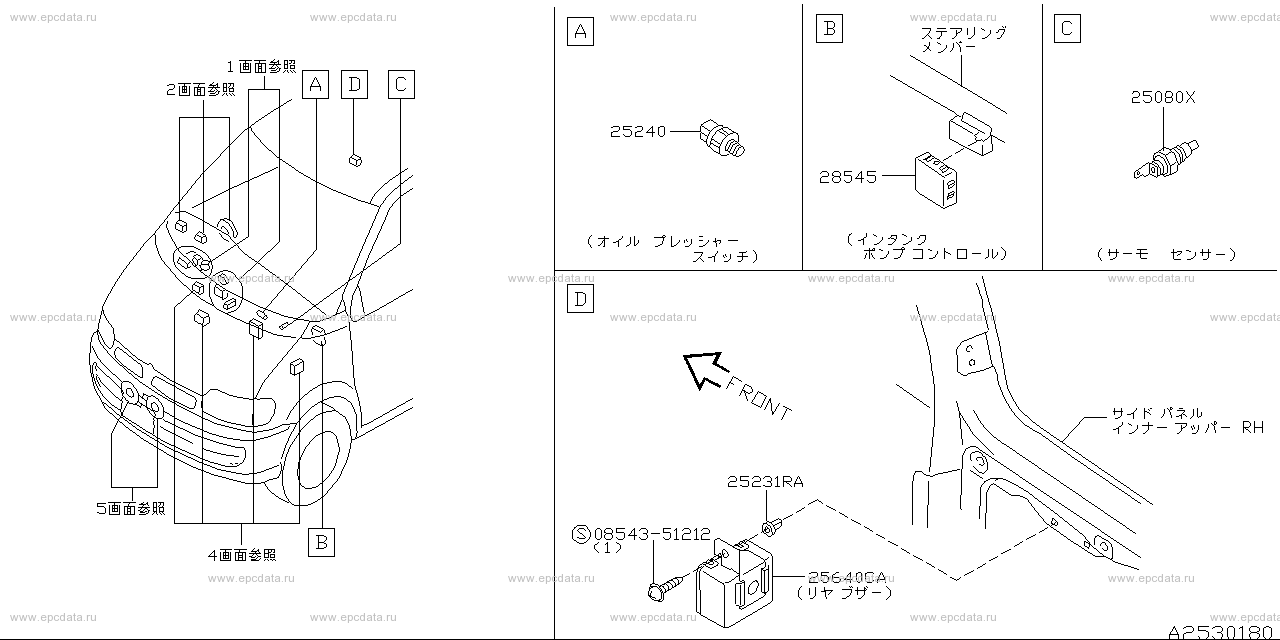

0854351212
25080X - sensor, water temperature
25231RA - grommet, screw
25240 - switch assembly, oil pressure
25640CA - buzzer assembly
28545 - control unit, in-tank pump

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998エンジン(1)
W +4DV +5DV01.1998 - ...エンジン(1)

Open full screen pictureOpen full screen picture
Up to the top

0854351212
0856661610
0891110637
24330 - breaker assembly, circuit power window
25038YA - buzzer assembly, warning
25710 - flasher unit
25730X - flasher assembly, combination
25732 - bracket, flasher
28220G - grommet, screw
28465 - timer assembly, fan motor
28467 - bracket, fan motor timer
28470 - timer assembly, seat belt
28514 - bracket, control amp
28540X - control assembly, shift lock

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998エンジン(2)
W +4DV +5DV01.1998 - ...エンジン(2)

Open full screen pictureOpen full screen picture
Up to the top

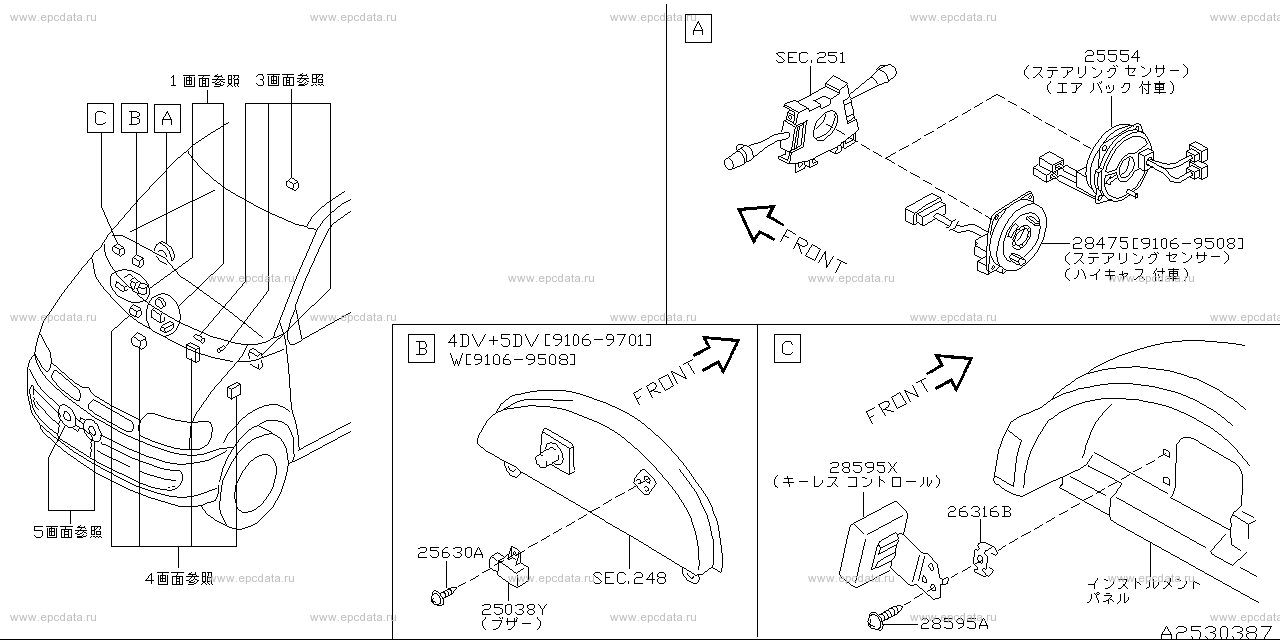

25038Y - buzzer assembly, warning
25554 - wire, steering air back (spiral cable)
25630A - screw
26316B - nut
28475 - sensor assembly, steering
28595A - screw
28595X - controller assembly, keyless

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998エンジン(5)
W +4DV +5DV01.1998 - ...エンジン(5)

Open full screen pictureOpen full screen picture
Up to the top

26310 - horn assembly, electric high
26310A - bolt
26316 - bracket, electric horn
26330 - horn assembly, electric low

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998エンジン(4)
W +4DV +5DV01.1998 - ...エンジン(4)

Open full screen pictureOpen full screen picture
Up to the top

083636162D
0854351212
24330A - bolt
24875G - plug
25640C - buzzer assembly
25660 - amplifier assembly, buzzer
28510 - amp assembly, windshield wiper
28512+A - bracket, wiper amp
28555N - control unit, diagnosis airbag
64892D - cover, hole
64892E - cover, hole
64892F - cover, hole

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998ボディー(4)
W +4DV +5DV01.1998 - ...ボディー(4)

Open full screen pictureOpen full screen picture
Up to the top

081466162G
0856661610
25235E - grommet, screw
25235LA - grommet, screw
28452M - bracket, timer
28478 - timer, curtain
28488A - grommet, screw
28510+A - amp assembly, windshield wiper
28512 - bracket, wiper amp
28523+A - amp, solenoid
98805MA - sensor assembly,G

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998ボディー(1)
W +4DV +5DV01.1998 - ...ボディー(1)

Open full screen pictureOpen full screen picture
Up to the top

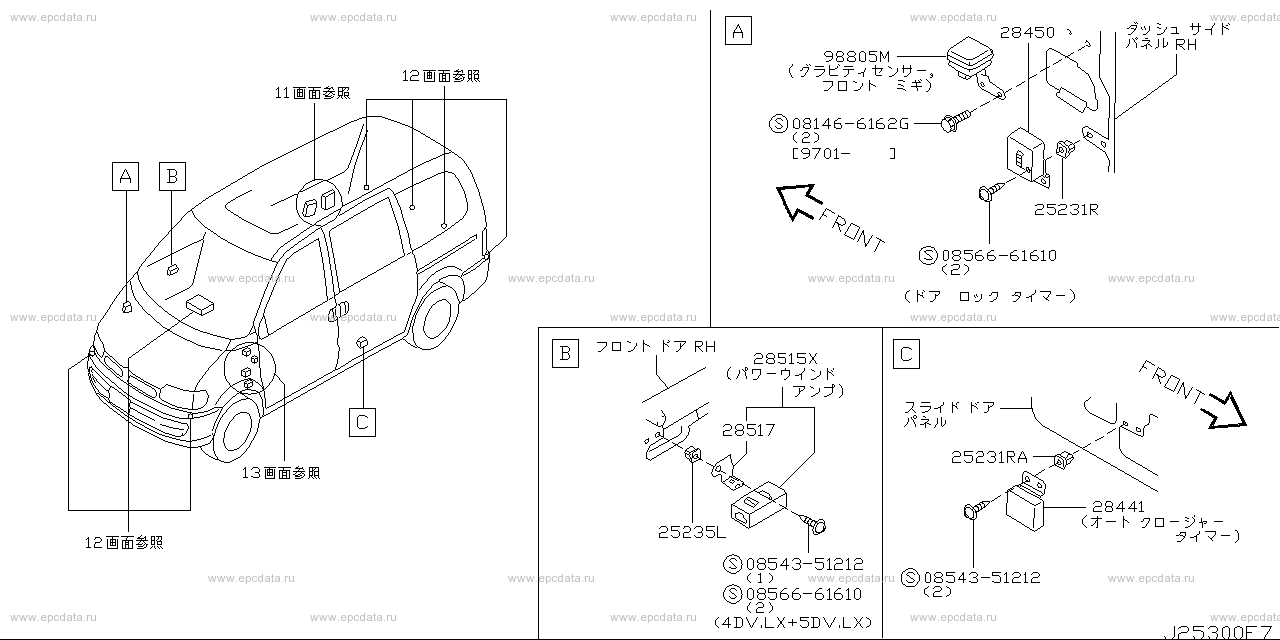

081466162G
0854351212
0856661610
25231R - grommet, screw
25231RA - grommet, screw
25235L - grommet, screw
28441 - timer, auto closure door (control unit)
28450 - timer, door lock
28515X - amp assembly, auto power window
28517 - bracket, auto power window amplifier
98805M - sensor assembly,G

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998ボディー(2)
W +4DV +5DV01.1998 - ...ボディー(2)

Open full screen pictureOpen full screen picture
Up to the top

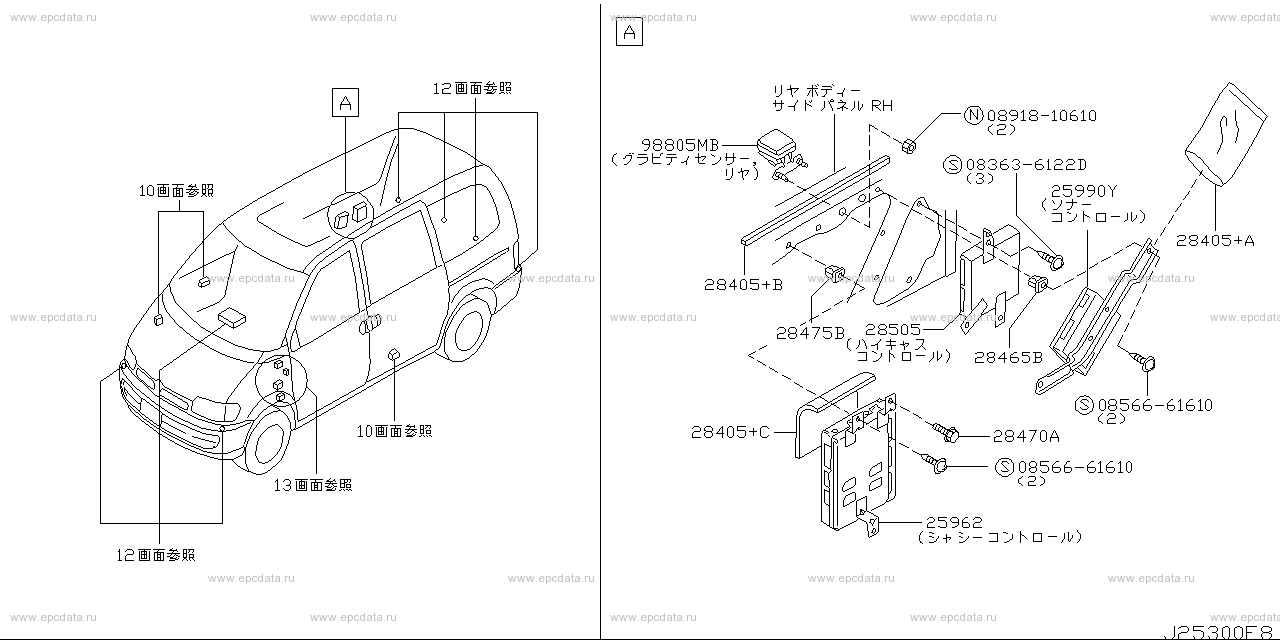

083636122D
0856661610
0891810610
25962 - control assembly, chassis
25990Y - control assembly, sonar
28405+A - cover, electrical
28405+B - cover, electrical
28405+C - cover, electrical
28465B - grommet, screw
28470A - screw
28475B - grommet, screw
28505 - control assembly,HICAS
98805MB - sensor assembly,G

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998ボディー(3)
W +4DV +5DV01.1998 - ...ボディー(3)

Open full screen pictureOpen full screen picture
Up to the top

25090H - spacer, floor sensor
25090HA - spacer, floor sensor
25231A - bolt
25505P - sensor, sonar
25505PA - sensor, sonar
25630A - screw
26310B - nut
28556M - sensor & diagnosis, air back

Nissan Vanette Serena genuine parts
